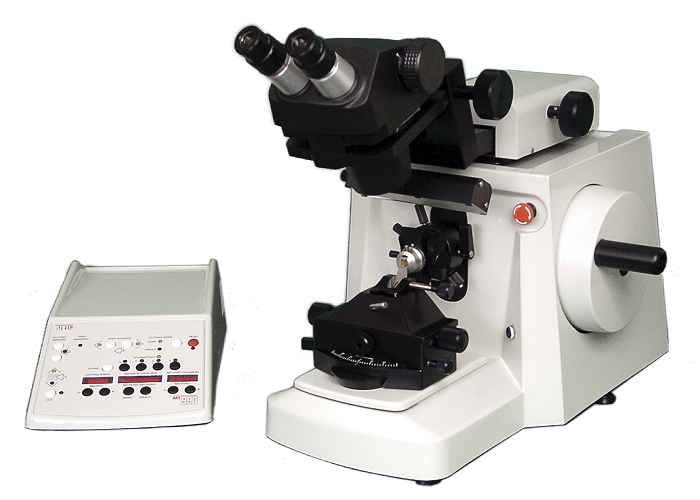

MT-990 motorised precision microtome
The RMC MT-990 is a universal, heavy duty, motorised microtome ideally suited to a wide variety of applications in histopathology, materials research, forensic science, quality control etc. With a motorised programmable automatic trim, the MT-990 microtome cuts paraffin, plastic and hard material specimens.
The motorised cutting mechanism and feed system of the MT990 with its robust carriage to eliminate backlash and chatter, are mounted on a heavy base casting to give maximum stability during sectioning.
An optional cryo attachment is available for sectioning from ambient temperature to -140C. See: cryo attachment.
MT-990 microtome highlights:
- Selectable cutting window
- Motorised programmable automatic trim
- Cuts paraffin, plastic and hard specimens
- Motorised cutting stroke – may also be used manually
- Motorised knife stage, 28mm maximum travel
- Feed totaliser, selectable for either total feed in micrometers or total number of sections
- Separate controller for hands-off operation
- Section waste tray
Technical specifications:
- Section thickness range: 0.25 to 30 microns in 0.25mm increments
- Vertical cutting stroke (manual or motorised): 64mm
- Horizontal knife advance (motorised): 28mm
- Cutting speed range: 0.1 to 330mm/sec
- Adjustable cutting zone
- Accelerated return stroke
- Automatic trimming in defined steps
- Positive hand wheel locking with additional emergency electronic brake
- Separate touch panel control unit with digital section counter and feed totalizer (µm)
- Three cutting modes: continuous cut, single stroke, intermittent cut
- Four-channel memory for storing section thickness/cutting speed combinations
- Fast coarse feed advance/reverse control
Ordering information:
-
CR1000 cryosectioning system for MT990
CR1000 : Cryosectioning system for MT990 Rotary MicrotomeThe CR1000 paired with the MT990 is exclusive to RMC Boeckeler with no other product of its kind on the market today. Ideal tool for cryosectioning polymers- rubbers- and films for optical and FTIR transmission microscopy- as well as cryo-planing sample surfaces for AFM and SEM. (refer to data sheet for more information)
Price On Request £0.00 Add to basket
CR1000 cryosectioning system for MT990
CR1000 : Cryosectioning system for MT990 Rotary MicrotomeThe CR1000 paired with the MT990 is exclusive to RMC Boeckeler with no other product of its kind on the market today. Ideal tool for cryosectioning polymers- rubbers- and films for optical and FTIR transmission microscopy- as well as cryo-planing sample surfaces for AFM and SEM. (refer to data sheet for more information)
£0.00Price On Request -
MT990 motorized rotary microtome
MT990 : Motorized Rotary Microtome(refer to data sheet for more information)
Price On Request £0.00 Add to basket
MT990 motorized rotary microtome
MT990 : Motorized Rotary Microtome(refer to data sheet for more information)
£0.00Price On Request
Accessories
-
Footswitch control
Footswitch control
Price On Request £0.00 Add to basket
-
16x eyepieces, pair
16x eyepieces- per pairFor GEN-1002 and GEN-1003 stereomicroscopes. Increases magnification to 80x.
Price On Request £0.00 Add to basket
16x eyepieces, pair
16x eyepieces- per pairFor GEN-1002 and GEN-1003 stereomicroscopes. Increases magnification to 80x.
£0.00Price On Request -
10x WF (23mm) eyepieces, pair
10x WF(23mm) eyepieces, per pairFor GEN-1002 and GEN-1003 stereomicroscopes.
Price On Request £0.00 Add to basket
10x WF (23mm) eyepieces, pair
10x WF(23mm) eyepieces, per pairFor GEN-1002 and GEN-1003 stereomicroscopes.
£0.00Price On Request -
Stereomicroscope mounted breath shield
Stereomicroscope mounted breath shield
Price On Request £0.00 Add to basket
Stereomicroscope mounted breath shield
Stereomicroscope mounted breath shield
£0.00Price On Request -
Stemi 508 trinocular stereo microscope
Stemi 508 trinocular stereo microscope 50/50% beam splitter- 8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces- phototube with 50/50% right path and c-mount camera adapter.
Price On Request £0.00 Add to basket
Stemi 508 trinocular stereo microscope
Stemi 508 trinocular stereo microscope 50/50% beam splitter- 8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces- phototube with 50/50% right path and c-mount camera adapter.
£0.00Price On Request -
Stemi 508 stereo microscope
Stemi 508 stereo microscope8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces.
Price On Request £0.00 Add to basket
Stemi 508 stereo microscope
Stemi 508 stereo microscope8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces.
£0.00Price On Request -

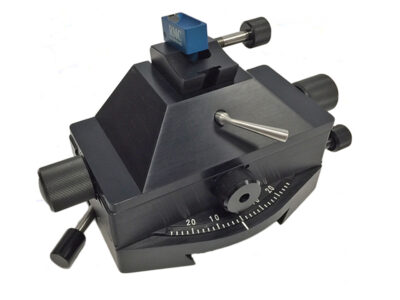

Specimen orientation mount (arc-segment mount)
Specimen orientation mount (arc segment mount) (for Type S knife holder)Features 360° rotation and standard curved orientation of +30°. Works in addition to specimen orientation in the X- and Y- axes. For use in conjunction with universal specimen holder ASY-1046.
Price On Request £0.00 Add to basket
Specimen orientation mount (arc-segment mount)
Specimen orientation mount (arc segment mount) (for Type S knife holder)Features 360° rotation and standard curved orientation of +30°. Works in addition to specimen orientation in the X- and Y- axes. For use in conjunction with universal specimen holder ASY-1046.
£0.00Price On Request -
Type E disposable blade holder, upper unit
Type E Disposable blade holder – upper unitQuick clamp system for high and low profile disposable Type-E blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
Price On Request £0.00 Add to basket
Type E disposable blade holder, upper unit
Type E Disposable blade holder – upper unitQuick clamp system for high and low profile disposable Type-E blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
£0.00Price On Request -

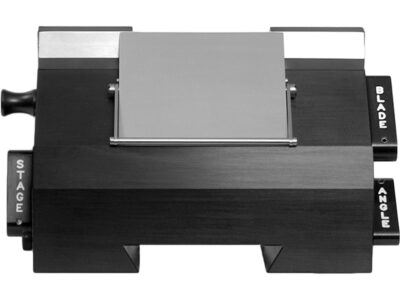

Type S knife stage
Type S knife stageFor semi thin sectioning techniques with glass- triangular tungsten carbide knives- diamond and sapphire knives. Lateral adjustment with fine feed knob. Knife may be rotated ±30° for alignment to specimen
Price On Request £0.00 Add to basket
Type S knife stage
Type S knife stageFor semi thin sectioning techniques with glass- triangular tungsten carbide knives- diamond and sapphire knives. Lateral adjustment with fine feed knob. Knife may be rotated ±30° for alignment to specimen
£0.00Price On Request -
Type N standard knife holder, upper unit
Type N standard knife holder – upper unitStable knife holder with clearance angle adjustment. Can accommodate steel or tungsten carbide knives. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
Price On Request £0.00 Add to basket
Type N standard knife holder, upper unit
Type N standard knife holder – upper unitStable knife holder with clearance angle adjustment. Can accommodate steel or tungsten carbide knives. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
£0.00Price On Request -
Type E complete disposable blade holder
Type E complete disposable blade holderQuick clamp system for high and low profile blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife (finger) guard. Consists of ASY-1038 and ASY-1041.
Price On Request £0.00 Add to basket
Type E complete disposable blade holder
Type E complete disposable blade holderQuick clamp system for high and low profile blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife (finger) guard. Consists of ASY-1038 and ASY-1041.
£0.00Price On Request -
Foil clamp (for type E- N and S knife holders)
Foil clamp (for Type E- N and S knife holders)For clamping thin materials. To be fitted directly on microtome cutting arm or in the standard specimen clamp. Spring-loaded jaws secure the specimen in position. A compensation slot in the jaw ensures perfect specimen clamping and constant section thickness.
Price On Request £0.00 Add to basket
Foil clamp (for type E- N and S knife holders)
Foil clamp (for Type E- N and S knife holders)For clamping thin materials. To be fitted directly on microtome cutting arm or in the standard specimen clamp. Spring-loaded jaws secure the specimen in position. A compensation slot in the jaw ensures perfect specimen clamping and constant section thickness.
£0.00Price On Request -
Cassette clamp (for type E and N knife holders)
Cassette clamp (for Type E and N knife holders)Universal quick release clamp for most types of histology cassettes for paraffin embedded samples. Orients on three axes.
Price On Request £0.00 Add to basket
Cassette clamp (for type E and N knife holders)
Cassette clamp (for Type E and N knife holders)Universal quick release clamp for most types of histology cassettes for paraffin embedded samples. Orients on three axes.
£0.00Price On Request -
Standard specimen clamp
Standard specimen clampFixed upper jaw ensures good stability- orients on X-and Y-axes and rotatable 360° for accurate positioning of the specimen to the knife edge. Maximum specimen size 55 x 50mm.
Price On Request £0.00 Add to basket
Standard specimen clamp
Standard specimen clampFixed upper jaw ensures good stability- orients on X-and Y-axes and rotatable 360° for accurate positioning of the specimen to the knife edge. Maximum specimen size 55 x 50mm.
£0.00Price On Request -

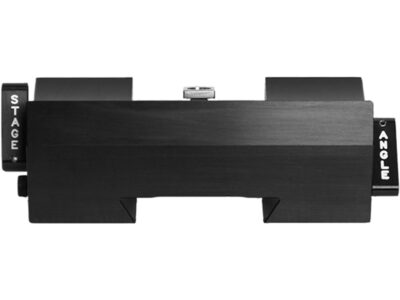

Type N and E universal knife holder, base unit
Type N and E universal knife holder – base unitRequired for knife holder upper units ASY-1038 and ASY-1039.
Price On Request £0.00 Add to basket
Type N and E universal knife holder, base unit
Type N and E universal knife holder – base unitRequired for knife holder upper units ASY-1038 and ASY-1039.
£0.00Price On Request -
Universal specimen holder
Universal specimen holderFor flat and round specimens that are less than 8mm diameter. Used with the specimen orientation mount ASY-1045. Includes 4mm specimen wrench.
Price On Request £0.00 Add to basket
Universal specimen holder
Universal specimen holderFor flat and round specimens that are less than 8mm diameter. Used with the specimen orientation mount ASY-1045. Includes 4mm specimen wrench.
£0.00Price On Request -
Insert for round specimen, diameter 6mm
Insert for round specimen: Diameter 6mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 6mm
Insert for round specimen: Diameter 6mm
£0.00Price On Request -
Insert for round specimen, diameter 15mm
Insert for round specimen: Diameter 15mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 15mm
Insert for round specimen: Diameter 15mm
£0.00Price On Request -
Stereomicroscope and mount assembly
Stereomicroscope and mount assembly. Stereomicroscope mounted in swivel arm with tilt and lateral adjustment. Includes adapter with mounting hardware.
Price On Request £0.00 Add to basket
Stereomicroscope and mount assembly
Stereomicroscope and mount assembly. Stereomicroscope mounted in swivel arm with tilt and lateral adjustment. Includes adapter with mounting hardware.
£0.00Price On Request -
Insert for round specimen, diameter 25mm
Insert for round specimen: Diameter 25mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 25mm
Insert for round specimen: Diameter 25mm
£0.00Price On Request -
Backlighting system for knife stage type-S
Backlighting system for knife stage Type-S. Ideal for the rotary microtome model MT 990.
Price On Request £0.00 Add to basket
Backlighting system for knife stage type-S
Backlighting system for knife stage Type-S. Ideal for the rotary microtome model MT 990.
£0.00Price On Request -

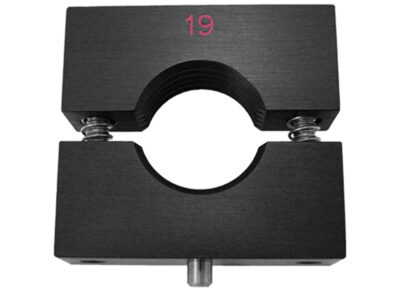

Insert for round specimen, diameter 19mm
Insert for round specimen: Diameter 19mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 19mm
Insert for round specimen: Diameter 19mm
£0.00Price On Request -
V clamp insert for clamping round specimens
V clamp insert for clamping round specimens: Minimum diameter 10mm
Price On Request £0.00 Add to basket
V clamp insert for clamping round specimens
V clamp insert for clamping round specimens: Minimum diameter 10mm
£0.00Price On Request
