Gold plated AFM discs
Magnetic metal specimen support discs are used on AFM and SPM systems that use a button magnet to hold the metal specimen disc in place. Nano-Tec metal specimen discs are made of magnetic type 430 stainless steel with a nominal thickness of 0.90mm and a tolerance of +/- 0.08mm.
The smooth edges and flat surfaces of the Nano-Tec AFM/SPM discs ensure secure holding by the button magnet. Specimens can be mounted directly on the metal discs with double-sided tape, epoxy or conductive paste. If a mica specimen support is needed, they can be easily mounted on the metal support discs.

Metals specimen support discs are currently offered in:

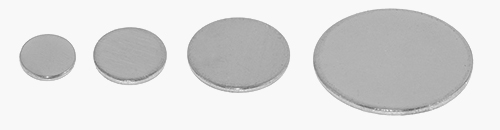

Bright stainless-steel Nano-Tec metal AFM/SPM specimen discs.
They are cleaned after manufacturing to remove the dull grey oxide layer you will find on other brands on AFM/ SPM discs. Available in four diameters: 10, 12, 15 and 20mm. Packaged in a plastic tube containing 50 discs.

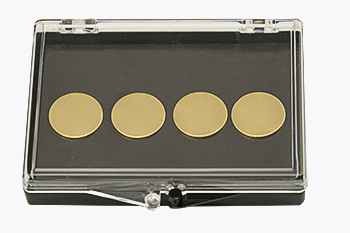

Gold plated Nano-Tec metal AFM/SPM specimen discs with 1µm of pure gold.
Gold is an inert metal with high electrical and thermal conductivity and, as a chemically inert material, resist electromigration. Available in four diameters: 10, 12, 15 and 20mm. Packaged in a 40-100808 AFM disc storage box.

Ordering information:
-
AFM/SPM metal support discs Ø10mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø10mm coated with 1µm gold (pkg/4)
£26.53 Add to basketAFM/SPM metal support discs Ø10mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø10mm coated with 1µm gold (pkg/4)
£26.53 -
AFM/SPM metal support discs Ø12mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø12mm coated with 1µm gold (pkg/4)
£27.49 Add to basketAFM/SPM metal support discs Ø12mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø12mm coated with 1µm gold (pkg/4)
£27.49 -
AFM/SPM metal support discs Ø15mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø15mm coated with 1µm gold (pkg/4)
£30.39 Add to basketAFM/SPM metal support discs Ø15mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø15mm coated with 1µm gold (pkg/4)
£30.39 -
AFM/SPM metal support discs Ø20mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø20mm coated with 1µm gold (pkg/4)
£38.10 Add to basketAFM/SPM metal support discs Ø20mm coated with 1µm of gold
Nano-Tec AFM/SPM metal specimen support discs – Ø20mm coated with 1µm gold (pkg/4)
£38.10 -
Nano-Tec AFM/SPM stainless steel support disc – 6mm
Nano-Tec AFM / SPM Stainless Steel Metal Specimen support disc- 6mm (Pkg/50)
£22.06 Add to basketNano-Tec AFM/SPM stainless steel support disc – 6mm
Nano-Tec AFM / SPM Stainless Steel Metal Specimen support disc- 6mm (Pkg/50)
£22.06 -
AFM/SPM stainless steel metal specimen support disc – Ø10mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø10mm (pkg/50)
£26.56 Add to basketAFM/SPM stainless steel metal specimen support disc – Ø10mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø10mm (pkg/50)
£26.56 -
AFM/SPM stainless steel metal specimen support disc – Ø12mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø12mm (pkg/50)
£27.46 Add to basketAFM/SPM stainless steel metal specimen support disc – Ø12mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø12mm (pkg/50)
£27.46 -
AFM/SPM stainless steel metal specimen support disc – Ø15mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø15mm (pkg/50)
£28.36 Add to basketAFM/SPM stainless steel metal specimen support disc – Ø15mm
Nano-Tec AFM/SPM stainless steel metal specimen support disc – Ø15mm (pkg/50)
£28.36 -
AFM/SPM stainless steel Metal specimen support disc – Ø20mm
Nano-Tec AFM / SPM Stainless Steel Metal Specimen support disc- Ø20mm (pkg/50)
£47.26 Add to basketAFM/SPM stainless steel Metal specimen support disc – Ø20mm
Nano-Tec AFM / SPM Stainless Steel Metal Specimen support disc- Ø20mm (pkg/50)
£47.26 -
Nano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs
Nano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs (each)
£5.74 Add to basketNano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs
Nano-Tec P1 Magnetic pick-up tool for stainless steel AFM discs (each)
£5.74
AFM/SPM handling and mounting tools
-
AFM/SPM mini-vice holders with 4mm slot Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM mini vice holders with 4mm slot, Ø12 x 4.5mm – magnetic (each)
£40.51 Add to basketAFM/SPM mini-vice holders with 4mm slot Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM mini vice holders with 4mm slot, Ø12 x 4.5mm – magnetic (each)
£40.51 -
AFM/SPM 90 degrees sample mount- Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM 90 degrees sample mount, Ø12 x 4.5mm – magnetic (each)
£24.76 Add to basketAFM/SPM 90 degrees sample mount- Ø12 x 4.5mm – magnetic
Nano-Tec AFM/SPM 90 degrees sample mount, Ø12 x 4.5mm – magnetic (each)
£24.76 -
AFM/SPM 90 degrees sample holder with S-Clip – Ø12 x 4.5mm
Nano-Tec AFM/SPM 90 degrees sample holder with S-Clip, Ø12 x 4.5mm- magnetic (each)
£40.51 Add to basketAFM/SPM 90 degrees sample holder with S-Clip – Ø12 x 4.5mm
Nano-Tec AFM/SPM 90 degrees sample holder with S-Clip, Ø12 x 4.5mm- magnetic (each)
£40.51
