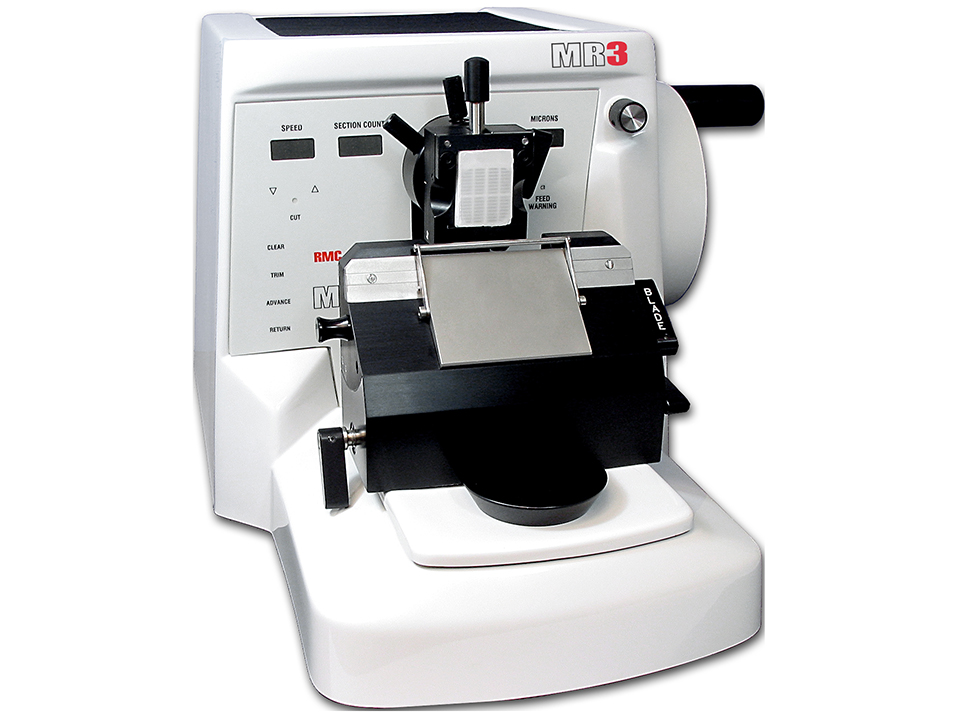

MR3 motorised rotary microtome
The RMC MR3 is a robust easy-to-use motorised rotary microtome with a section range of 0.5 to 60 microns ideal for a wide range of applications including: histology, material research and forensics.
- Heavy base casting to reduce vibration
- Vertical cutting stroke with solid cross roller bearing specimen carriage
- Digital section counter display
- Touch screen control panel with easy to clean membrane switches
- Electronic feed with fast return
- Separate trim control function with footswitch
- Motorized cutting speed range 0-400mm/sec
- Pre-set trim setting for fast block trimming
- Removable waste tray
Technical specifications:
- Rapid trim function
- Positive mechanical lock on handwheel
- Specimen orientation
- Specimen rotation
- Digital section counter display on front panel
- Section waste tray
- Maximum specimen size: 55 x 50mm
- Cutting stroke: 64mm
- Retraction: 70 microns
- Motorised feed: 28mm
- Handwheel lock: positive lock at 12:00 o’clock or 6:00 o’clock position
- knob on left side of microtome
- Specimen Orientation: x and y axis with 8 × tilt plus rotation
- Section thickness range: 0.5 to 60microns
- Section thickness increments: 0.5 to 2 microns in 0.5 micron steps
- 2 to 10 microns in 1-micron steps
- 10 to 20 microns in 2-micron steps
- 20 to 60 microns in 5-micron steps
- Dimensions: H-279mm x W-273mm x L-457mm Weight: 24.3kg
Ordering information:
-
MR3 motorized rotary microtome
MR3 : Motorized Rotary Microtome(refer to data sheet for more information)
Price On Request £0.00 Add to basket
MR3 motorized rotary microtome
MR3 : Motorized Rotary Microtome(refer to data sheet for more information)
£0.00Price On Request
-
Footswitch control
Footswitch control
Price On Request £0.00 Add to basket
-
16x eyepieces, pair
16x eyepieces- per pairFor GEN-1002 and GEN-1003 stereomicroscopes. Increases magnification to 80x.
Price On Request £0.00 Add to basket
16x eyepieces, pair
16x eyepieces- per pairFor GEN-1002 and GEN-1003 stereomicroscopes. Increases magnification to 80x.
£0.00Price On Request -
10x WF (23mm) eyepieces, pair
10x WF(23mm) eyepieces, per pairFor GEN-1002 and GEN-1003 stereomicroscopes.
Price On Request £0.00 Add to basket
10x WF (23mm) eyepieces, pair
10x WF(23mm) eyepieces, per pairFor GEN-1002 and GEN-1003 stereomicroscopes.
£0.00Price On Request -
Stereomicroscope mounted breath shield
Stereomicroscope mounted breath shield
Price On Request £0.00 Add to basket
Stereomicroscope mounted breath shield
Stereomicroscope mounted breath shield
£0.00Price On Request -
Stemi 508 trinocular stereo microscope
Stemi 508 trinocular stereo microscope 50/50% beam splitter- 8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces- phototube with 50/50% right path and c-mount camera adapter.
Price On Request £0.00 Add to basket
Stemi 508 trinocular stereo microscope
Stemi 508 trinocular stereo microscope 50/50% beam splitter- 8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces- phototube with 50/50% right path and c-mount camera adapter.
£0.00Price On Request -
Stemi 508 stereo microscope
Stemi 508 stereo microscope8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces.
Price On Request £0.00 Add to basket
Stemi 508 stereo microscope
Stemi 508 stereo microscope8:1 zoom- 6.3x to 50x magnification- with 10x WF (23mm) eyepieces.
£0.00Price On Request -
Specimen orientation mount (arc-segment mount)
Specimen orientation mount (arc segment mount) (for Type S knife holder)Features 360° rotation and standard curved orientation of +30°. Works in addition to specimen orientation in the X- and Y- axes. For use in conjunction with universal specimen holder ASY-1046.
Price On Request £0.00 Add to basket
Specimen orientation mount (arc-segment mount)
Specimen orientation mount (arc segment mount) (for Type S knife holder)Features 360° rotation and standard curved orientation of +30°. Works in addition to specimen orientation in the X- and Y- axes. For use in conjunction with universal specimen holder ASY-1046.
£0.00Price On Request -
Type E disposable blade holder, upper unit
Type E Disposable blade holder – upper unitQuick clamp system for high and low profile disposable Type-E blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
Price On Request £0.00 Add to basket
Type E disposable blade holder, upper unit
Type E Disposable blade holder – upper unitQuick clamp system for high and low profile disposable Type-E blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
£0.00Price On Request -
Type S knife stage
Type S knife stageFor semi thin sectioning techniques with glass- triangular tungsten carbide knives- diamond and sapphire knives. Lateral adjustment with fine feed knob. Knife may be rotated ±30° for alignment to specimen
Price On Request £0.00 Add to basket
Type S knife stage
Type S knife stageFor semi thin sectioning techniques with glass- triangular tungsten carbide knives- diamond and sapphire knives. Lateral adjustment with fine feed knob. Knife may be rotated ±30° for alignment to specimen
£0.00Price On Request -
Type N standard knife holder, upper unit
Type N standard knife holder – upper unitStable knife holder with clearance angle adjustment. Can accommodate steel or tungsten carbide knives. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
Price On Request £0.00 Add to basket
Type N standard knife holder, upper unit
Type N standard knife holder – upper unitStable knife holder with clearance angle adjustment. Can accommodate steel or tungsten carbide knives. Integrated knife guard. Requires universal knife holder base unit ASY-1041.
£0.00Price On Request -
Type E complete disposable blade holder
Type E complete disposable blade holderQuick clamp system for high and low profile blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife (finger) guard. Consists of ASY-1038 and ASY-1041.
Price On Request £0.00 Add to basket
Type E complete disposable blade holder
Type E complete disposable blade holderQuick clamp system for high and low profile blades. For use with Feather™ and Tissue Tek™ style blades or equivalent. Integrated knife (finger) guard. Consists of ASY-1038 and ASY-1041.
£0.00Price On Request -
Foil clamp (for type E- N and S knife holders)
Foil clamp (for Type E- N and S knife holders)For clamping thin materials. To be fitted directly on microtome cutting arm or in the standard specimen clamp. Spring-loaded jaws secure the specimen in position. A compensation slot in the jaw ensures perfect specimen clamping and constant section thickness.
Price On Request £0.00 Add to basket
Foil clamp (for type E- N and S knife holders)
Foil clamp (for Type E- N and S knife holders)For clamping thin materials. To be fitted directly on microtome cutting arm or in the standard specimen clamp. Spring-loaded jaws secure the specimen in position. A compensation slot in the jaw ensures perfect specimen clamping and constant section thickness.
£0.00Price On Request -
Cassette clamp (for type E and N knife holders)
Cassette clamp (for Type E and N knife holders)Universal quick release clamp for most types of histology cassettes for paraffin embedded samples. Orients on three axes.
Price On Request £0.00 Add to basket
Cassette clamp (for type E and N knife holders)
Cassette clamp (for Type E and N knife holders)Universal quick release clamp for most types of histology cassettes for paraffin embedded samples. Orients on three axes.
£0.00Price On Request -
Standard specimen clamp
Standard specimen clampFixed upper jaw ensures good stability- orients on X-and Y-axes and rotatable 360° for accurate positioning of the specimen to the knife edge. Maximum specimen size 55 x 50mm.
Price On Request £0.00 Add to basket
Standard specimen clamp
Standard specimen clampFixed upper jaw ensures good stability- orients on X-and Y-axes and rotatable 360° for accurate positioning of the specimen to the knife edge. Maximum specimen size 55 x 50mm.
£0.00Price On Request -
Type N and E universal knife holder, base unit
Type N and E universal knife holder – base unitRequired for knife holder upper units ASY-1038 and ASY-1039.
Price On Request £0.00 Add to basket
Type N and E universal knife holder, base unit
Type N and E universal knife holder – base unitRequired for knife holder upper units ASY-1038 and ASY-1039.
£0.00Price On Request -
Universal specimen holder
Universal specimen holderFor flat and round specimens that are less than 8mm diameter. Used with the specimen orientation mount ASY-1045. Includes 4mm specimen wrench.
Price On Request £0.00 Add to basket
Universal specimen holder
Universal specimen holderFor flat and round specimens that are less than 8mm diameter. Used with the specimen orientation mount ASY-1045. Includes 4mm specimen wrench.
£0.00Price On Request -
Insert for round specimen, diameter 6mm
Insert for round specimen: Diameter 6mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 6mm
Insert for round specimen: Diameter 6mm
£0.00Price On Request -
Insert for round specimen, diameter 15mm
Insert for round specimen: Diameter 15mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 15mm
Insert for round specimen: Diameter 15mm
£0.00Price On Request -

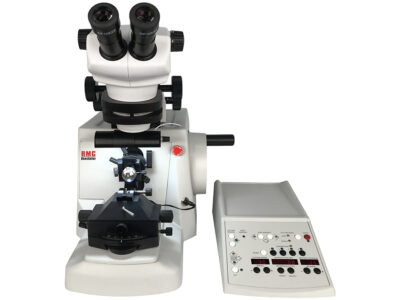

Stereomicroscope and mount assembly
Stereomicroscope and mount assembly. Stereomicroscope mounted in swivel arm with tilt and lateral adjustment. Includes adapter with mounting hardware.
Price On Request £0.00 Add to basket
Stereomicroscope and mount assembly
Stereomicroscope and mount assembly. Stereomicroscope mounted in swivel arm with tilt and lateral adjustment. Includes adapter with mounting hardware.
£0.00Price On Request -
Insert for round specimen, diameter 25mm
Insert for round specimen: Diameter 25mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 25mm
Insert for round specimen: Diameter 25mm
£0.00Price On Request -
Backlighting system for knife stage type-S
Backlighting system for knife stage Type-S. Ideal for the rotary microtome model MT 990.
Price On Request £0.00 Add to basket
Backlighting system for knife stage type-S
Backlighting system for knife stage Type-S. Ideal for the rotary microtome model MT 990.
£0.00Price On Request -
Insert for round specimen, diameter 19mm
Insert for round specimen: Diameter 19mm
Price On Request £0.00 Add to basket
Insert for round specimen, diameter 19mm
Insert for round specimen: Diameter 19mm
£0.00Price On Request -
V clamp insert for clamping round specimens
V clamp insert for clamping round specimens: Minimum diameter 10mm
Price On Request £0.00 Add to basket
V clamp insert for clamping round specimens
V clamp insert for clamping round specimens: Minimum diameter 10mm
£0.00Price On Request
