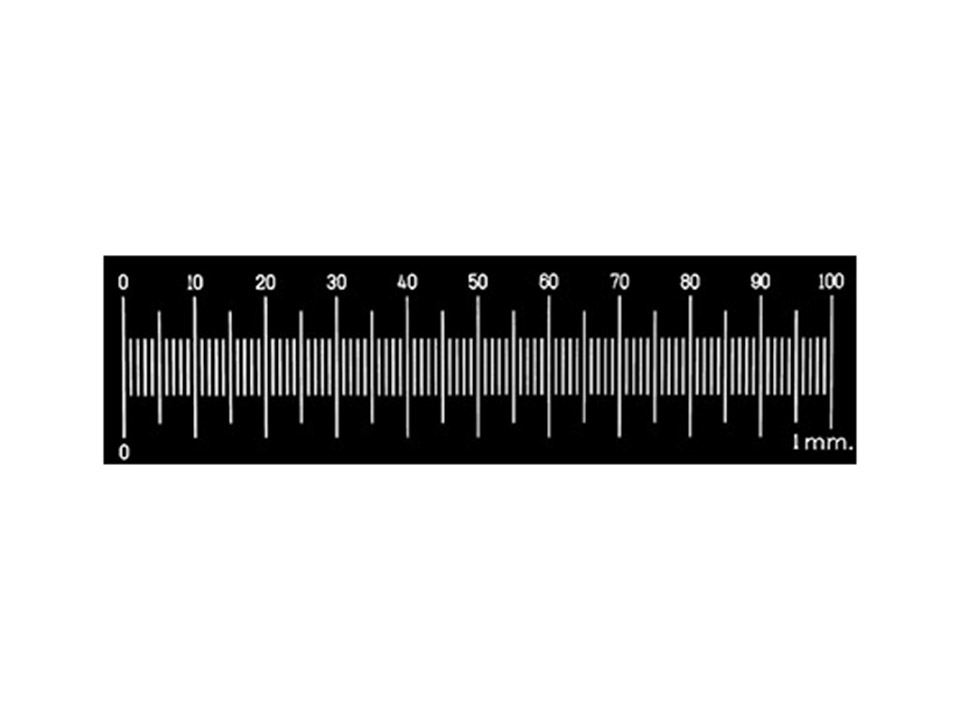

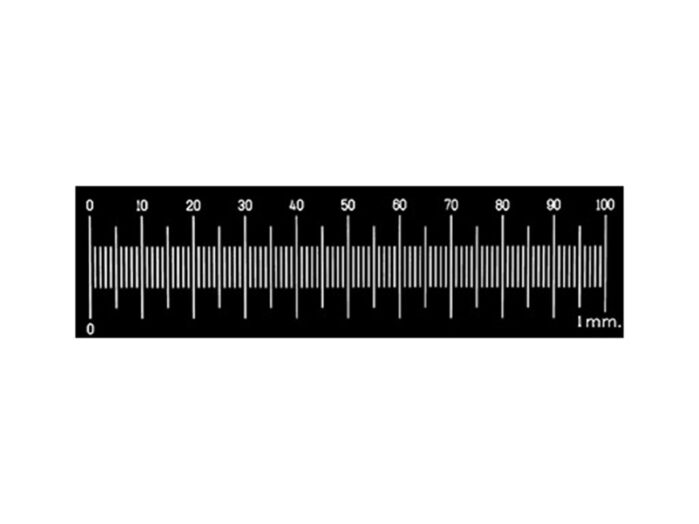

S78 Micrometer scale (for reflected light) with NPL traceable calibration certificate
S78 Micrometer scale with 1mm scale in 0.01mm divisions for reflected light, with NPL traceable calicbration certificate. The scale is etched in a highly reflective chromium layer for reflected light and appears black against a white background. Mounted in a black anodised aluminium slide (each).
£666.22
