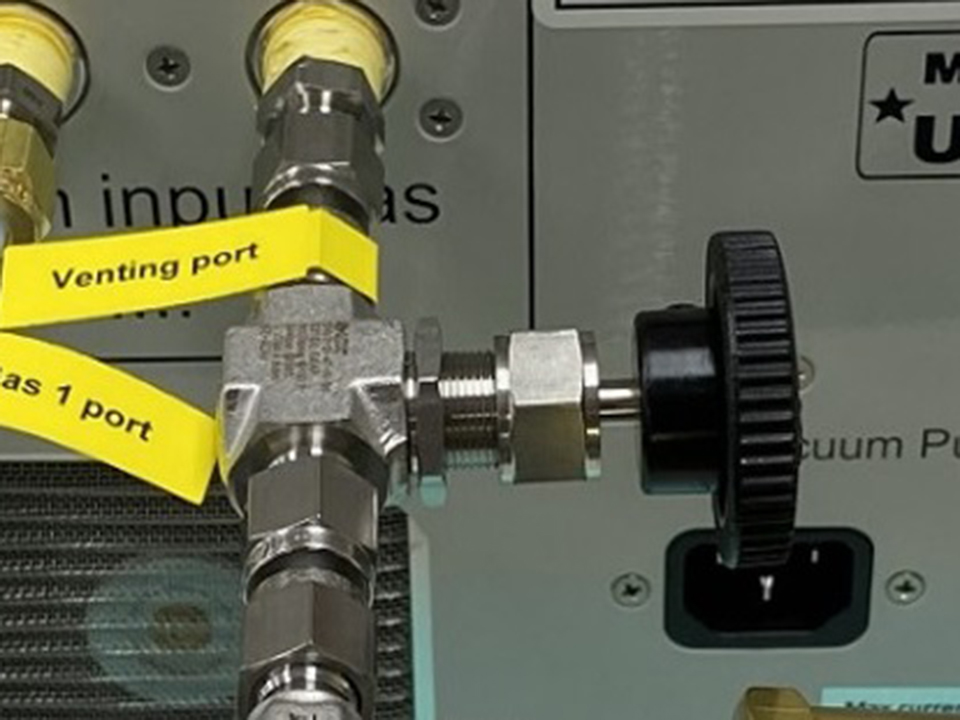

Adjustable external venting flow rate control valve
Adjustable external venting flow rate control valve (reduces the venting gas flow rate to prevent light or powdery samples from being blown away)
£0.00
Related products
-
Third MFC regulated gas input
Third MFC regulated gas input
Price On Request £0.00 Add to basket
-
PS-006 planetary gear table
Consisting of base plate for connection to the tilt and height adjustable specimen table of the CCU-010 base unit. Specimen holders for six large (Ø 25.4mm) or six small (Ø12.7mm) SEM pin stubs. DC micro-motor for rotation and planetary movement, quartz sensor (centre), speed control: 0-100%, rotation: 0-20rpm approximately, planets: 0-65rpm approximately
Price On Request £0.00 Add to basket
PS-006 planetary gear table
Consisting of base plate for connection to the tilt and height adjustable specimen table of the CCU-010 base unit. Specimen holders for six large (Ø 25.4mm) or six small (Ø12.7mm) SEM pin stubs. DC micro-motor for rotation and planetary movement, quartz sensor (centre), speed control: 0-100%, rotation: 0-20rpm approximately, planets: 0-65rpm approximately
£0.00Price On Request -
150W RF power supply upgrade
7 inch resistive LCD industrial touchscreen controller. Fully automatic operation with 20 recipe support. Job sequence mode operation for executing three cleaning steps. Two mass flow controller (MFC) regulated gas inputs (can support up to three MFC upon request). Corrosion resistant pirani pressure sensor. Venting/purging port with electronic solenoid valve (Swagelock 1/4″ compression fitting). One pumping port with electronic shutoff valve and standard NW/KF25 vacuum port.
Price On Request £0.00 Add to basket
150W RF power supply upgrade
7 inch resistive LCD industrial touchscreen controller. Fully automatic operation with 20 recipe support. Job sequence mode operation for executing three cleaning steps. Two mass flow controller (MFC) regulated gas inputs (can support up to three MFC upon request). Corrosion resistant pirani pressure sensor. Venting/purging port with electronic solenoid valve (Swagelock 1/4″ compression fitting). One pumping port with electronic shutoff valve and standard NW/KF25 vacuum port.
£0.00Price On Request -
CCU-010 LV (standard vacuum)
Safematic CCU-010 LV compact, fully automatic standard vacuum coating system. Including dual-position terminating film thickness monitoring system. Please note that for a complete working system the CCU-010LV requires the following: backing rotary vacuum pump (A65201903), oil mist filter (A46226000) and pumping hose (C10514297). Select coating head option SP-010 (sputteringing), CT-010 (carbon evaporation) or both. Select required sputtering target(s). Detailed description: • glass work chamber- 104 mm Ø x 106 mm (DN 100 ISO-KF compatible)• implosion guard and safety monitoring• table (Ø 80 mm) – tilt and height adjustable • multi-sample holder for 20 standard (13 mm) pin stubs to meet most requirements• film thickness monitor (FTM) based on a quartz crystal oscillator- usable in two positions (centre/edge)• full range power supply (90-260VAC- 50/60Hz)• coating process head interface (gas and electric) including automatic detection• 5.7“ TFT touch display• recipe-driven user interface for guaranteed reproducible results• storage / view of the last ten coating processes• automatic vent of the system when power failures – prevents backstreaming of oil from the rotary pump• intuitive operator’s software• graphic display of process data with Windows-based software Coating LAB (option)• flange connection (KF25) for connection of an external roughing pump• external alarm connector• USB service interface for easy analysis and software upgrades• automatic valve control for two process gases and venting• operating manual
Price On Request £0.00 Add to basket
CCU-010 LV (standard vacuum)
Safematic CCU-010 LV compact, fully automatic standard vacuum coating system. Including dual-position terminating film thickness monitoring system. Please note that for a complete working system the CCU-010LV requires the following: backing rotary vacuum pump (A65201903), oil mist filter (A46226000) and pumping hose (C10514297). Select coating head option SP-010 (sputteringing), CT-010 (carbon evaporation) or both. Select required sputtering target(s). Detailed description: • glass work chamber- 104 mm Ø x 106 mm (DN 100 ISO-KF compatible)• implosion guard and safety monitoring• table (Ø 80 mm) – tilt and height adjustable • multi-sample holder for 20 standard (13 mm) pin stubs to meet most requirements• film thickness monitor (FTM) based on a quartz crystal oscillator- usable in two positions (centre/edge)• full range power supply (90-260VAC- 50/60Hz)• coating process head interface (gas and electric) including automatic detection• 5.7“ TFT touch display• recipe-driven user interface for guaranteed reproducible results• storage / view of the last ten coating processes• automatic vent of the system when power failures – prevents backstreaming of oil from the rotary pump• intuitive operator’s software• graphic display of process data with Windows-based software Coating LAB (option)• flange connection (KF25) for connection of an external roughing pump• external alarm connector• USB service interface for easy analysis and software upgrades• automatic valve control for two process gases and venting• operating manual
£0.00Price On Request
