Showing all 4 results
-

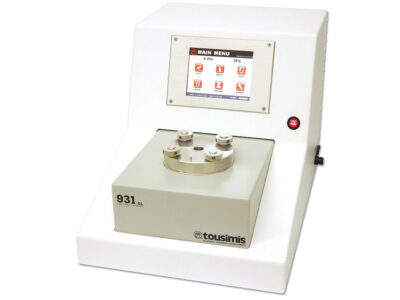

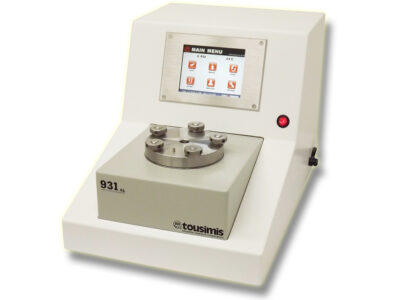

Tousimis® 931 automatic critical point dryer with 103.6mm/3.40″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer.
Price On Request £0.00 Add to basket
Consisting of:
Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes”
Metering valves with Vernier handles that include a slow fill for very delicate specimens.
Internal 0.5μm particle filtration – protects specimens and valves.
Process chamber (86.36mm/3.4″ diameter, 31.75mm/1.25” depth).
Rapid adiabatic chamber cooling.
Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheetTousimis® 931 automatic critical point dryer with 103.6mm/3.40″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer.
Consisting of:
Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes”
Metering valves with Vernier handles that include a slow fill for very delicate specimens.
Internal 0.5μm particle filtration – protects specimens and valves.
Process chamber (86.36mm/3.4″ diameter, 31.75mm/1.25” depth).
Rapid adiabatic chamber cooling.
Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet£0.00Price On Request -
Tousimis® 931 automatic critical point dryer with 31.75mm/1.25″ chamber
Autosamdri®-815, Series A is a fully automatic critical point dryer. Smooth, simple operation and precise control ensures reproducible results with a wide range of specimen types. Applications include SEM, FIB/SEM, gels and small MEMS. The 815 Series A features indicator LEDs which signal every mode of operation at a glance and a bottom-lit chamber for clear observation of chamber and specimens. The optional SOTER™ condenser captures waste alcohol and deadens exhaust noise.
Price On Request £0.00 Add to basket
There is a wide selection of specimen holders to suit most specimen types – please see below for details.
Autosamdri®-815, Series A highlights:
– Fully automatic critical point drying – easy to use, reproducible results.
– Indicator LEDs signal every mode of operation at a glance.
– Chamber size (31.56mm/1.25″ diameter, 31.75mm/1.25” depth).
– Vernier metering valves – reproducible process settings.
– Static pressure control module – automatic pressure stability.
– Top-mounted valves – easy loading/unloading of process chamber.
– Internal filtration – protects specimens and valves down to 0.5µm.
– Bottom-lit chamber with viewing port aids visualisation of chamber and specimens.
– Fast adiabatic chamber cooling with CO2.
– Safe operation – fitted with rupture disk (activates @ 2000 psi) and pressure relief valve (activates @ 1250-1350 PSI).
– Optional SOTER™ condenser – captures waste alcohol and reduces exhaust noise.Tousimis® 931 automatic critical point dryer with 31.75mm/1.25″ chamber
Autosamdri®-815, Series A is a fully automatic critical point dryer. Smooth, simple operation and precise control ensures reproducible results with a wide range of specimen types. Applications include SEM, FIB/SEM, gels and small MEMS. The 815 Series A features indicator LEDs which signal every mode of operation at a glance and a bottom-lit chamber for clear observation of chamber and specimens. The optional SOTER™ condenser captures waste alcohol and deadens exhaust noise.
There is a wide selection of specimen holders to suit most specimen types – please see below for details.
Autosamdri®-815, Series A highlights:
– Fully automatic critical point drying – easy to use, reproducible results.
– Indicator LEDs signal every mode of operation at a glance.
– Chamber size (31.56mm/1.25″ diameter, 31.75mm/1.25” depth).
– Vernier metering valves – reproducible process settings.
– Static pressure control module – automatic pressure stability.
– Top-mounted valves – easy loading/unloading of process chamber.
– Internal filtration – protects specimens and valves down to 0.5µm.
– Bottom-lit chamber with viewing port aids visualisation of chamber and specimens.
– Fast adiabatic chamber cooling with CO2.
– Safe operation – fitted with rupture disk (activates @ 2000 psi) and pressure relief valve (activates @ 1250-1350 PSI).
– Optional SOTER™ condenser – captures waste alcohol and reduces exhaust noise.£0.00Price On Request -
Tousimis® 931 automatic critical point dryer with 63.5mm/2.50″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer. Consisting of: Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes” Metering valves with Vernier handles that include a slow fill for very delicate specimens. Internal 0.5μm particle filtration – protects specimens and valves. Process chamber (63.56mm/2.5″ diameter, 31.75mm/1.25” depth). Rapid adiabatic chamber cooling. Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Price On Request £0.00 Add to basket
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.Tousimis® 931 automatic critical point dryer with 63.5mm/2.50″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer. Consisting of: Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes” Metering valves with Vernier handles that include a slow fill for very delicate specimens. Internal 0.5μm particle filtration – protects specimens and valves. Process chamber (63.56mm/2.5″ diameter, 31.75mm/1.25” depth). Rapid adiabatic chamber cooling. Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.£0.00Price On Request -
Tousimis® 931 automatic critical point dryer withh 63.5mm/2.50″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer.
Price On Request £0.00 Add to basket
Consisting of:
Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes”
Metering valves with Vernier handles that include a slow fill for very delicate specimens.
Internal 0.5μm particle filtration – protects specimens and valves.
Process chamber (63.56mm/2.5″ diameter, 31.75mm/1.25” depth).
Rapid adiabatic chamber cooling.
Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.Tousimis® 931 automatic critical point dryer withh 63.5mm/2.50″ diameter chamber
Tousimis Autosamdri®-931 critical point dryer.
Consisting of:
Bright LCD touchscreen control with choice of factory default settings or to create custom “recipes”
Metering valves with Vernier handles that include a slow fill for very delicate specimens.
Internal 0.5μm particle filtration – protects specimens and valves.
Process chamber (63.56mm/2.5″ diameter, 31.75mm/1.25” depth).
Rapid adiabatic chamber cooling.
Teflon chamber spacers to conserve liquid CO2 when smaller specimen holders are used.
Internal condensing muffler – captures and eliminates purge exhaust noise.
Top-loading process chamber that is lit for easy viewing.
Non-mechanical purge stirring for complete purge.
‘Stasis” software which gives complete range control.
Cabinet (W) 38.0cm x (H) 33.5cm x (D) 50.8cm with static-free design.
Flexible high-pressure braided stainless steel inert Teflon® lined LCO2 supply hose, 1.5m long LCO2.
Filter assembly (8784) removes water, oil and particulates down to 0.5μm.
Static-free exhaust tubing for the PURGE/VENT/BLEED and COOL exhaust outlets. Spare chamber O-ring (2), chamber lamps (2) and 5A slo-blow fuses (2). User manual and check-out data sheet.£0.00Price On Request
